ON / OFF Control & Dimming Control , Microwave Motion Sensor Switch , VR Adjustable

This is a naked board sensor only, with built-in MCU and VR setting adjustable, no mote extra software development needed, easy & fast for customers to integrate into their own PCB / system.

Features--

5.8GHz C-band microwave.

With built-in MCU, no more extra software development needed, easy & fast productization.

Input voltage 5V DC (12V / 24V DC version available on request).

Input current:≥20mA.

Output 5V DC high-low voltage & PWM signal.

Super compact, flexible to be integrated into any suitable fixtures.

Setting done by 3pcs individual VR, clockwise to 5V(max.), counter clock-wise to 0V(min.).

PIN connection, easy assembly.

Detection range up to max.12m in diameter.

Mounting height: 3~6m.

Settings--

PIN description--

Peripheral port extension--

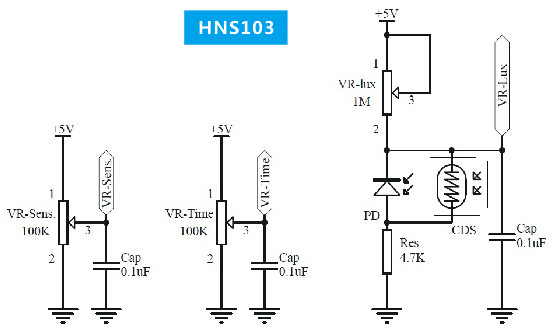

Typical peripheral circuit application--
