On / Off Control , Presence Motion Detector , Lux - Off Function , 120 ~ 277v Input

Simple ON/OFF control for American market, input voltage 120~277V AC. Duall-PD daylight sensor to differently read the natural light and artificial light. Real Lux-Off function for built-in application.When there is motion detected, the lamp will be switched on automatically, and after the chosen hold-time, the lamp will be switched off.

Features--

Operating voltage: 120〜277V AC, 60Hz.

Rated load: 200W (capacitive)

Stand-by power: <0.5w.

Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

Detection range up to 12m in diameter.

Mounting height: 3〜6m.

Operation temperature: -20℃ ~ +70℃ .

IP rating: IP20.

Settings--

Detection range

Hold-time

Hold-time means the time period to keep the lamp on 100% after motion detected.

*when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Daylight sensor

Daylight sensor means the daylight threshold to enable or disable the sensor function.

"Disable”: The sensor works always, even during daylight.

^"50lux, 25lux": The sensor works only in twilight.

"10lux, 2lux": The sensor works only in the dark.

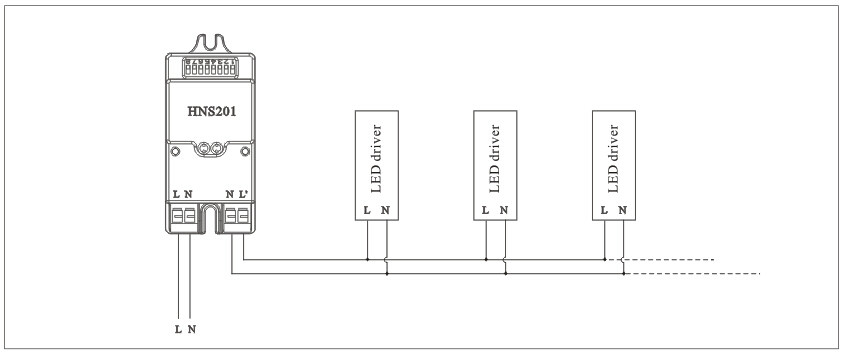

Wiring diagram--

Lux-Off function--

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).

Note: Lux-Off sampling time--30s
