    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting

    Ask Lasest Price
    Brand Name : Hynall
    Model Number : ANT03
    Certification : RED, FCC, RoHS
    Price : To be negotiated
    Payment Terms : T/T
    Supply Ability : 30,000pcs / month
    Delivery Time : 3~4 weeks for bulk orders
    • Product Details
    • Company Profile

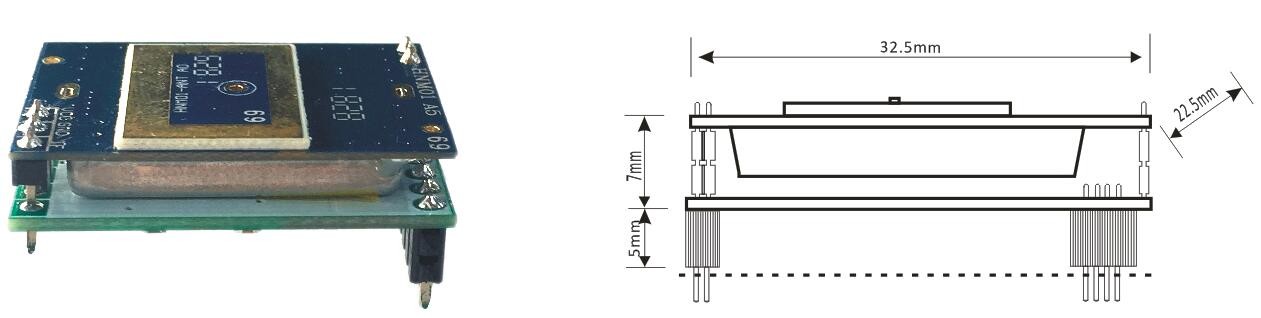

    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting

    Digital Microwave Antenna Head , 5V Microwave Sensor , For Lighting , Security , etc .


    Same as the digital PIR sensor head, this is our unique digital microwave antenna head, which gives a 5v high / low voltage signal for your products / systems to adopt, DSP output makes it easy and simple to integrate with all terminal devices. This sensor head could be used as a component for not only lighting, but also security, or automation. etc.

    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting

    Features--


    Operation voltage:5V DC
    Operation current:15mA
    Operation temperature:-20℃ ~ + 75℃
    Warming-up time:20s
    Digital output:5v high / low voltage
    V-Tune
    DescriptionV-Tune PIN VoltageSensitivity level
    Low sensitivity0.00v-1.249v25%
    Medium sensitivity1.25v-2.49v50%
    High sensitivity2.50v-3.74v75%
    Test sensitivity3.75v-5.00v100%

    PIN description--


    PINNameDescription
    1+5V DCInput DC power +5V DC
    2GNDGND
    3OutputOutput 5V high / low voltage
    4V-TuneSensitivity
    5NCFix PIN
    6NCFix PIN

    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting


    Timing chart--


    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting


    Peripheral port extension--


    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting


    Detection pattern--


    Digital Microwave Antenna Head 5V Microwave Sensor For Lighting
