PWM Dimming Control , Dimmable Motion Sensor , 5V DC Input , VR Adjustable , Naked Board

This is only a naked board sensor, with built-in MCU and VR setting adjustable, no mote extra software development needed, easy & fast for customers to integrate into their own PCB / system.

Features--

5.8GHz C-band microwave.

With built-in MCU, no more extra software development needed, easy & fast productization.

Input voltage 5V DC (12V / 24V DC version available on request).

Input current:≥20mA.

Output 5V PWM signal.

Setting done by 3pcs individual VR, clockwise to 5V(max.), counter clock-wise to 0V(min.).

PIN connection, easy assembly.

Detection range up to max.12m in diameter.

Mounting height: 3~6m.

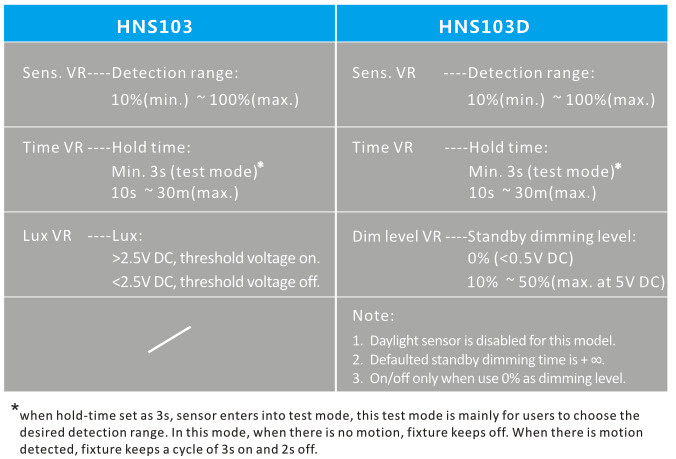

Settings--

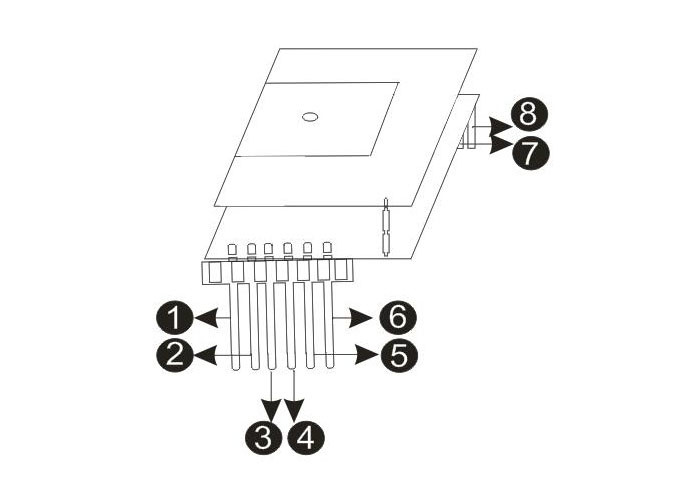

PIN description--

Detection range--

Peripheral port extension--

Typical peripheral circuit application--
