    Daylight Harvest Dimmable Motion Sensor Remote Commissioning HNS111DH

    Ask Lasest Price
    Brand Name : Hynall
    Model Number : HNS111DH
    Certification : RED, FCC, RoHS
    Price : To be negotiated
    Payment Terms : T/T
    Supply Ability : 30,000pcs / month
    Delivery Time : 3~4 weeks for bulk orders
    • Product Details
    • Company Profile

    Daylight Harvest Dimmable Motion Sensor Remote Commissioning HNS111DH

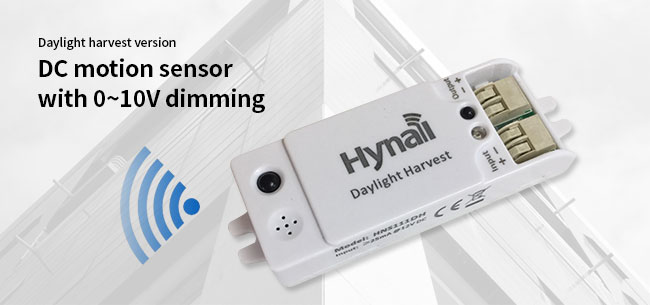

    Model name: HNS111DH 12V DC Daylight Harvesting dimmable motion Sensor


    This model is a better solution used in lighting and lighting system, and it owns daylight harvest and 0-10v dimming function by remote control setting.


    Advantage:

    1. Super small size, flexible to be integrated into any suitable fixtures.

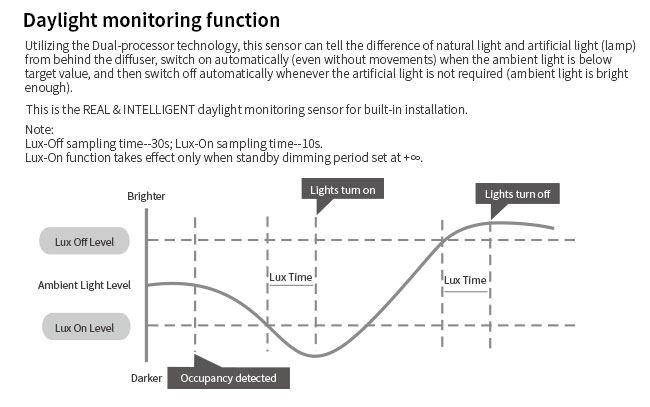

    2. Dual-processor daylight sensor technology, real Daylight monitoring function for built-in application.
    3. Daylight harvest function is ideal for office / commercial lighting.
    4. One button Memory function, easy operation and user friendly.

    5. Customized service: Yes


    Product Information:

    Input voltage 12V DC

    Input current:≧25mA.


    1~10V dimming signal

    Source current / Sink current: Max. 20mA;
    0-10V leads can not be short-circuit.

    IR remote commissioning, easy setting and user friendly.


    Detection range: Max.12m in diameter.

    Mounting height: 3~6m.


    RoHS compliant


    Settings (by remote control IR21)--

    Permanent ON/OFF function

    Press ON/OFF button, fixture goes to permanent on or permanent off mode, sensor is disabled.

    *press "Auto” ,”Reset" or “Ambient learn” to quit this mode.

    Sensor mode

    Press“ Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

    Reset function

    Press“ Reset” button, all settings go back to factory default settings.

    Factory default settings--
    Sensitivity=100%
    Daylight sensor=disable
    Hold time=5min
    Twilight time=+
    Twilight level=10%
    daylight harvest function is not available in factory
    default mode, since the daylight sensor is disable.
    You need to choose the appropriate lux threshold first to activate the daylight harvest function.

    Quality Daylight Harvest Dimmable Motion Sensor Remote Commissioning HNS111DH for sale
