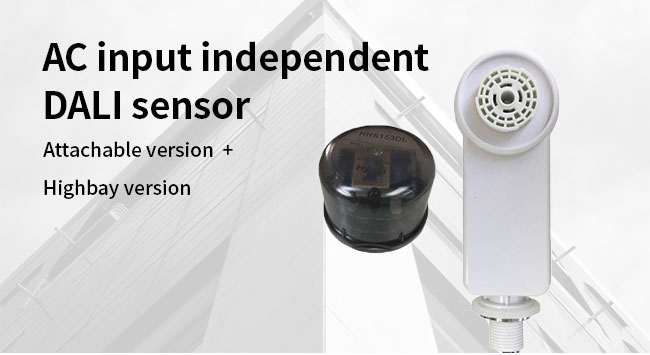

Model name: HND153DL AC input independent DALI zhaga book18 motion sensor

This model is a special design for flood lights etc. outdoor lights. Independent DALI motion sensor can achieve small grouping without DALI system. It will be a good choice for the customers in future.

Advantage:

1. Multiple functions: DALI broadcast dimming and daylight monitoring function

2. AC input, 220-240V AC or 120-277V AC input two options

3. Independent DALI motion sensor, easy wiring and operation.

4. Customized service: Yes

Product Information:

Setting by remote control IR22

Step1: Long press “Start” button for 2s till green LED permanent on, then input all desired settings by pressing the buttons in each function zone, the green LED will flicker once to indicate the operation success. *After 2s, start to input the parameters, interval time each function zone button will be within 10s. Otherwise, need re-operate step 1 for memory scene.

Step 2: Press “Memory” button to memorize all settings parameters. Green LED will flicker ONCE to indicate the operation success.

Step 3: Press “Apply” button to copy the same settings to other sensors, point the remote control to the receiving sensor for min. 2s. Red LED will flicker to indicate the operation success, the receiving sensor will buzz also to indicate success receival. e.g., setting detection range 50%, daylight threshold 200lux, hold-time 30s, dim off 1h, dim level 10%, the steps should be: 1. press “start” button for 2s, choose “50%”, “200lux”, “30s”, “1h”, “10%” function zone button. 2. press “memory” button. 3. press “apply” to other sensors, then all of them will share the same settings.

HYNALL INTELLIGENT CONTROL CO. LTD.

is a technology & innovation oriented team who persistently strive for all kinds of professional microwave motion sensor controls based on our 20 years+ experiences in industry, we focus ONLY on microwave motion sensing technology, to serve our customers with ultimate solutions that match best and save most!!

Why Hynall?

Although Hynall is 8 years only, we have the most experienced / professional  R&D team + Sales team, thanks to our rich experiences for more than 20 years in microwave motion sensor industry. Our R&D team firstly studied and introduced microwave technology into China for lighting use. From this point of view, we are proud enough to call ourself the industry pioneer, and we still keep that strengths with us till now.

What makes us stand out from others?

a)  Unlike many sensor manufacturers who also get themself involved in driver business or others, we focus only on our expertise--microwave products / solutions, we only do what we are really good at. Every product out of Hynall is microwave related, we seek for product diversity inside microwave industry only!

b)  We have a comprehensive range of all series including antenna modules, digital antennas, AC input versions, DC input versions, VR adjustable versions, remote control versions, detached versions, daylight harvesting version, and so on.

c)  With such professional + well experienced R&D + Sales team, we understand deeply of different lighting fixture types and various sensor applications, enable us to offer customers with best product selection, trouble shooting and after sales service.

d)  We are fast-responding and very flexible for all kinds tailor made products.
