Edge Dimming Microwave Motion Sensor Switch HNT205 Trailing 240VAC

Model name: HNT205 Trailing edge microwave motion sensor switch

This model is a particular design for retrofit purpose on trailign edge teconology based on fixtures, AC LED lamps, AC halogen
lamps, etc. Convert / upgrade easily existing fixtures into intelligent motion sensor control without extra change, at the same time,

Push-Dim function acquired.

Advantage:

1. Trailing edge dimming and Push Dim two options

2. DIP switch setting and remote control setting two options

3. Easy shift between “sensor mode” and “sensor off mode”, to fit for different demands.

4. Customized service: YES

Product information:

1.	Input voltage:	220-240V AC & 90-120V AC
2.	Rated load:	Capacitive 150W & Resistive 200W
3.	Stand-by power:	<1w
4.	Over-heat protection:	80%-50%-10%-OFF
5.	Over-load protection:	automatically shut off when load ≥300w
6.	Detection range:	Max. 12m in diameter for ceiling and 15m for wall
7.	Mounting height:	3~6m
8.	Operation temperature:	-20℃~ + 70℃
9.	Color:	White

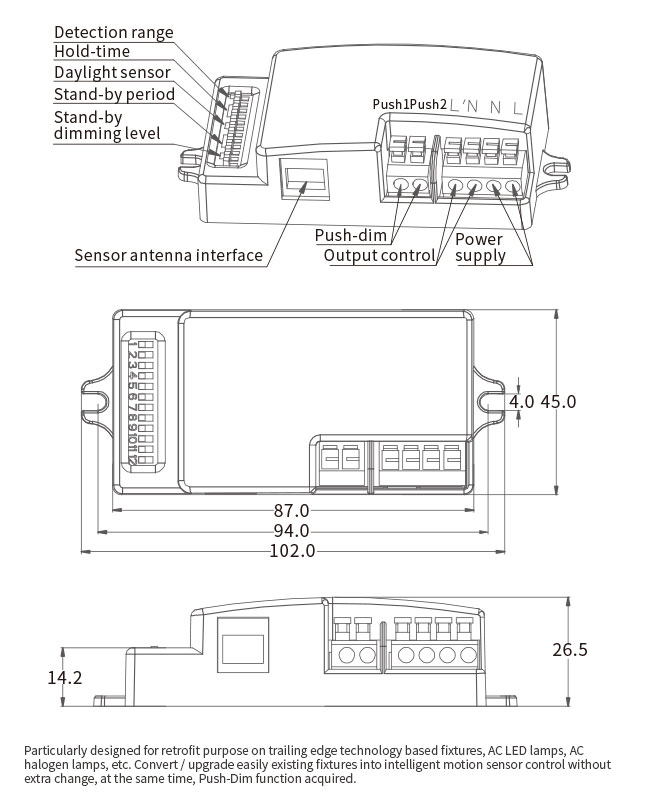

Structure and Size:

DIP switch setting:

Detection range

It can be reduced by selecting the combination on the DIP switches to fit precisely each application.

* when detection range set as “sensor off”, this sensor becomes then a pure trailing edge dimmer with push-dim function, no matter with or without the detached antenna head ANT01/ANT02.

Hold-time

That is the time period to keep the lamp on 100% after motion detected.

* when hold-time set as 3s, sensor enters into test mode, this test mode is mainly for users to choose the desired detection range. In this mode, the daylight sensor is disabled, when there is no
motion, fixture keeps off, when there is motion detected, fixture keeps a cycle of 3s on and 2s off.

Daylight sensor

The daylight threshold to enable or disable the sensor function.

“Disable”: The sensor works always, even during daylight.
“50lux”: The sensor works only in twilight.
“10lux, 2lux”: The sensor works only in the dark

Stand-by period

This is the time period that the lamp remains at a low light level before it is completely switched off in the long absence of people

“+∞ ”: means bi-level dimming control, the fixture never switch off.

Stand-by dimming level

This is the dimmed low light level you would like to have after the hold-time in the absence of people.

* 0% means on/off control.
