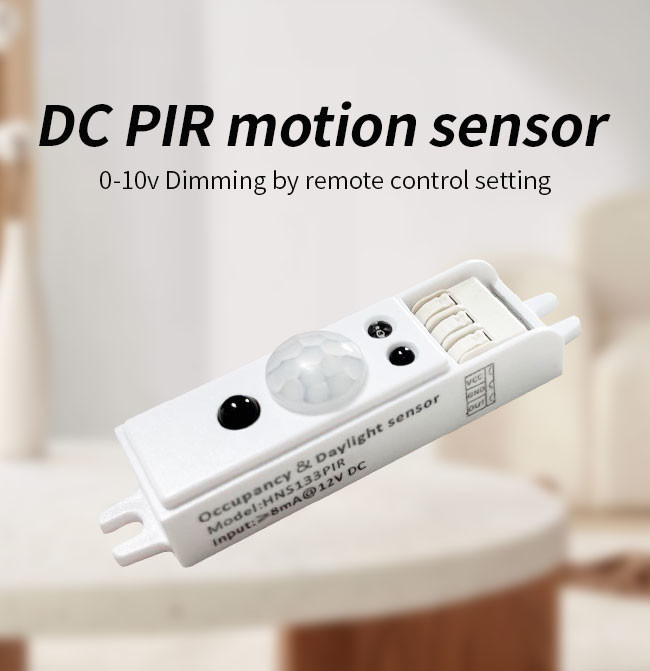

HNS133PIR Quick detail of dimmable pir sensor
1, 0-10v tri-level dimming control and daylight lux on function
2, IR remote commissioning, easy setting and user friendly
3, Memory function with one button commissioning
4, By default, the lights automatically turn off after 30 seconds
on requirement
Description of dimmable pir sensor
Dimmable pir sensor is a wired PIR & Daylight detector. It adopts
advanced PIR and daylight technology in signal processing, and
provides an excellent detection ability. You can get the multiple
functions sensor. Save cost and easy making the structure.
Specification of dimmable pir sensor
| Detecting method | PIR & lux on |
| Detecting distance | About 6m |
| Detecting angle | 110 ° |
| Mounting height | 3-4m for ceiling mounting |
| Input voltage | 12V-24V DC normal version |
| Output signal | Generally 0-10v, can customized PWM |
| Operation environment | -10°C~+50°C |
Function Performance
1. One-key memory commissioning
Long press “Start” button for 2s till green LED permanent on, then
input all desired settings by pressing the buttons in each function
zone, the green LED will flicker once to indicate the operation
success.
*After 2s, start to input the parameters, interval time each
function zone button will be within 10s.Otherwise, need re-operate
step 1 for memory scene.
Press “Memory” button to memorize all settings parameters. Green
LED will flicker ONCE to indicate the operation success
Press “Apply” button to copy the same settings to other sensors,
point the remote control to the receiving sensor for min. 2s. Red
LED will flicker to indicate the operation success, the receiving
sensor will buzz also to indicate success receival.
e.g., setting detection range 50%, daylight threshold 200lux,
hold-time 30s, dim off 1h, dim level 10%, the steps should be:
1. press “start” button for 2s, choose “50%”, “200lux”, “30s”,
“1h”, “10%” function zone button.
2. press “memory” button.
3. press “apply” to other sensors, then all of them will share the
same settings.
Application of 12v pir motion sensor
- Hotel rooms
- Office
- Rooms
- Parking
- Corridor
Advantage of dimmable pir sensor
HNS133PIR special design is for linear light, LED panel, troffer,
etc. It is 0-10v dimming for single light without lighting system.
Super compact size and multiple functions are the advantage for the
PIR sensor.
What makes us stand out from others?
1. We are intelligent control solution provider and our motion
sensor factory is based on Shenzhen China.
-- With such professional & experienced R & D sales team, we
understand deeply of different lighting fixture types and various
sensor applications, it enables us to offer cusotmers with best
product selection, trouble shooting and after sales services.
FAQ:
Q1. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the
color and position are alright, we would make sampling first from
silk print factory and take picture for your second confirmation
before mass production.
Q2. Do you offer guarantee for the products?
A: Yes, we offer five year guarantee for the products.
