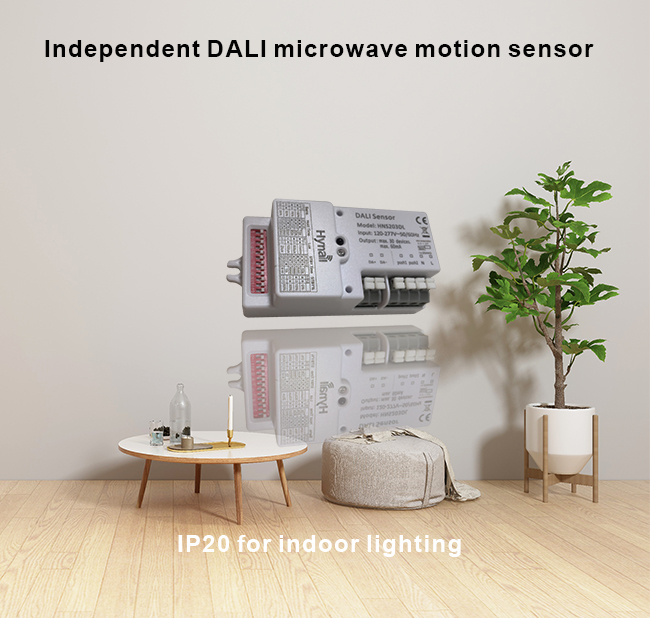

HNS203DL independent DALI Motion Sensor DIP switch setting with
DALI power supply
Quick detail of dali light sensor
1, 5.8GHz C-band microwave motion sensor, tri-level dimming
control.
2, Operating voltage: 120-277V AC, 50/60Hz.
3, Switched power : Max. 30 devices; Max. 60mA.
4, Stand-by power: <1w.
5, Dual-processor technology, real Daylight monitoring function for
built-in application.
6, Detection range up to 12m in diameter.
7, Mounting height: 3~6m.
8, Operation temperature: -20 °c ~ + 70 °c.
9, RoHS compliant.
Description of dali light sensor
Independent DALI sensor, and only can connect with DALI driver, is
not available for
DALI system and DALI panel.
Specification of dali light sensor
| Small size | 102*45*27.5mm |
| Detecting range | Max.12m |
| Mounting height | Max. 6m |
| Input voltage | 220-240V AC |
| Output signal | DALI dimming |
| Operation environment | -20°C~+70°2C |
1-10V driver is being replaced by DALI driver. This sensor contains
a DALI power supply circuit,
which gives DALI output to the driver to carry out the sensor
on/off and dimming command.
DIP switch setting
1, Detection range can be reduced by selecting the combination on
the DIP switches to fit precisely each application.
2, Hold time:Hold-time means the time period to keep the lamp on
100% after motion detected.
when hold-time set as 3s, sensor enters into test mode, this test
mode is mainly for users to choose
the desired detection range. In this mode, the daylight sensor is
disabled, when there is no motion,
fixture keeps off, when there is motion detected, fixture keeps a
cycle of 3s on and 2s off.
Why Choose Us:
| 1. R&D strength: | publish new items per 2 months,10+ year experience,alomost 100%
success rate |
| 2. Sales strength: | Professional sales,long term after-sale service promised. |
| 3. Complete&strict QC system | many years experienced officers,complete QN system including
IQC,IPQC,FQC,QN AND QE |
| 4. Product quality | Under 0.1% defected rate. 5 years warranty |
| 5. Certification: | CE,ROHS, ETL, FCC, RED |
| 8. OEM/ODM ability: | Over 5 years OEM/ODM experience |
FAQ:
Q: When will you ship my order?
A: Sample: 2-7 days. Bulk order: 10-20 days.
Q: What's your MOQ?
A: 1pcs
