12V microwave motion sensor super compact with dual processor technology

Daylight Sensor with timer function and tri-level dimming for HNP102

DC input, tri-level dimming control and for real built-in daylight sensor

Quick Details:

1. 12 / 24V DC input
2. Dual daylight sensor to distinguish natural light & artificial light
3. Really for built-in application

4. Tri-level dimming control
5. With timer embedded

6. 5 years warranty

Features:

Setting:

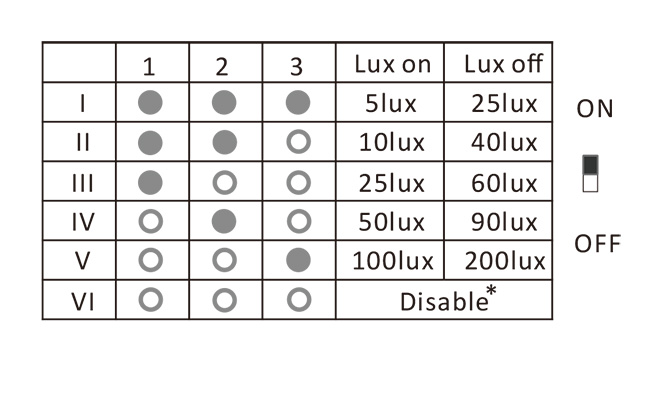

1. Daylight threshold

This is the threshold for the daylight sensor to switch on & off.

“Lux on”value means the daylight sensor will switch on when detected natural light is less than it.

“Lux off”value means the daylight sensor will switch off when detected natural light is more than it.
Note: Lux-on sampling time--10s; Lux-off sampling time--30s.

* when set as “Disable”, the daylight sensor will always be 100% on in both day and night.

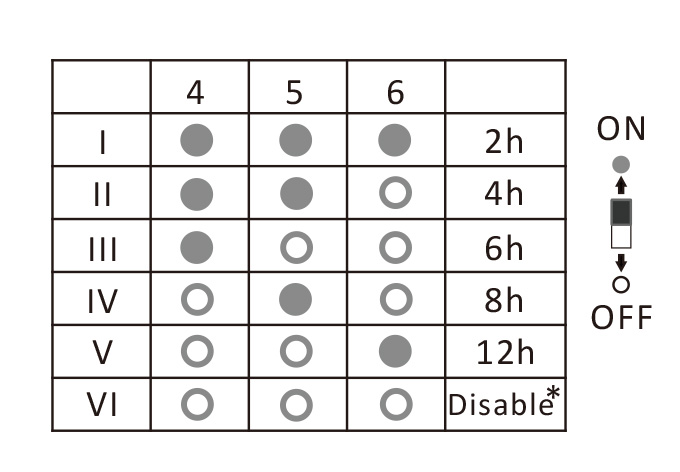

2. Timer period

This is the period for the lamp to keep 100% on when natural light 5 is below set threshold.
*when set as “Disable”, this daylight sensor will become a simple on & off daylight sensor, switched

on 100% at insufficient natural light, switches off at enough natural light.

3. Dimming level

After the timer period, if the natural light is still insufficient, the lamp will drop to a pre-defined dimming

level. this dimmed level will sustain until the natural light becomes enough and the daylight sensor switch
off totally.

*when set as 0%, means the daylight sensor will directly switch off right after the timer period elapses regardless

of the natural light, even in the mid-night.

Note--Defaulted factory setings as below:
Daylight threshold = 10lux
Timer period = 4h
Dimming level = 10%

Typical applica

tion

Setings for below scenario: At 7:00AM, when natural light becomes sufficient, the daylight sensor

automati-cally switch the fixture off.
