12V microwave sensor with remote controllable , Daylight Harvesting and Tri - Level Dimming Control function

This sensor with Dual-processor technology successfully combines motion detection and daylight harvesting function. Real Daylight monitoring function for built-in application.

Quick Detail:

1. Dual daylight sensor

2. Tri-level dimming control

3. Daylight harvest function

4. Remote commissioning

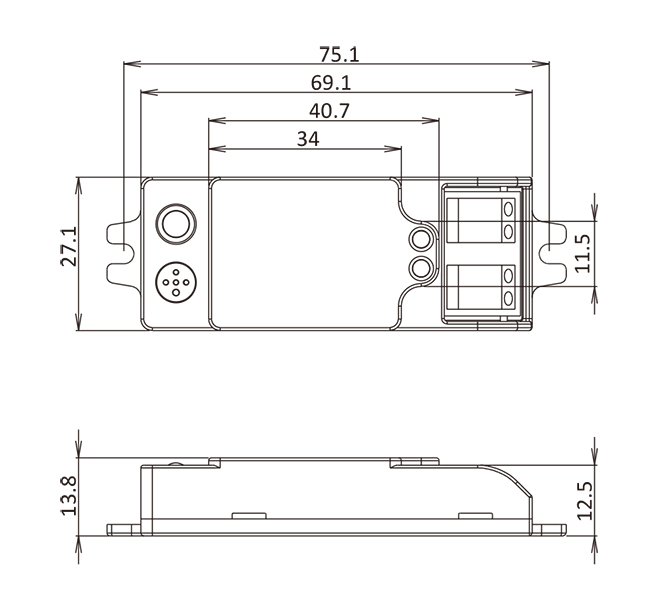

Size:

Features:

7. 5.8GHz C-band microwave.

8. Super compact, flexible to be integrated into any suitable fixtures.

9. Dual-processor technology, real Daylight monitoring function for built-in application.

10. Dual-processor technology, Daylight harvest function, ideal for office / commercial lighting.

11. IR remote commissioning, easy setting and user friendly.

12. RoHS compliant.

Settings(by remote control IR11):

Easy operation for daylight harvest:

step 1 Choose the desired daylight sensor threshold, the daylight sensor will automatically switch on when
surrounding brightness is below the chosen threshold. If surrounding brightness is over the threshold,
the whole daylight sensor will not work at all.

step 2 During operation, the daylight sensor regulates the light output automatically according to the level of
surrounding brightness. The natural light goes up, the artificial light goes down; the natural light goes
down, the artificial light goes up.

step 3 The daylight sensor will automatically switch off when the natural light is confirmed sufficient (lux-off
sampling time is 30s).

Note: This special daylight sensor responds only to changes of natural light, any artificial light has no influence on its readings.
The formula & graphics above are just for end users to understand better how this daylight harvest sensor works roughly,
No guarantee that all testing results in real application will be 100% matching.
Suggested setting for the daylight harvest level is 300 lux, this value should suit most of general applications.
If 300lux doesn’t match nicely, pls try different values (higher or lower) to fit better for your specific application based
on your actual on-site feelings.
