12V/24V DC input dimmable motion sensor 2channels output integrated dimming control and tunable white functions super compact

Quick Detail:

1. Dual-processor technology, real Lux-off &daylight monitoring function for built-in application.

2. IR remote commissioning, easy setting and user friendly.

3. Easy access by DIP switch to shift between cool, white and warm.

Size: 86*33*15.6mm

Features:

8. Real Lux-Off function for built-in application.

9.Easy access by DIP switch to shift between cool, white and warm.

10. RoHS compliant.

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

Remote control Settings:

OCC OFF
Press “” button, the motion sensor will be disabled.

press “” , “” or “” to re-activate the motion sensor.

Dim
Press “” button to automatically dim up or down the light brighness during hold-time from 10% to 100%. Another press to lock it down when
desired brightness is achieved.

OCC ON
Press “” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on / off.

Reset function
Press “” button, all sensor settings go back to factory default settings.

Ambient learn
Press “” button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

Test mode

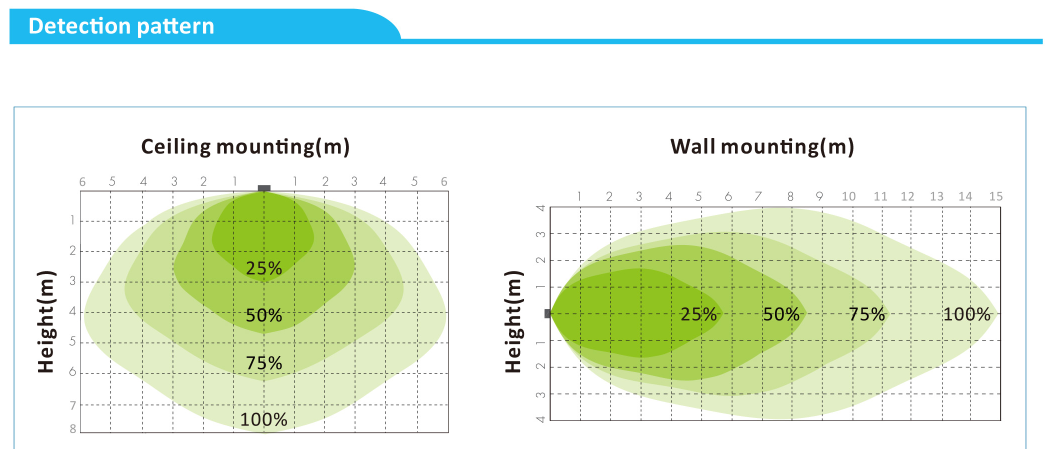

“Test mode”is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

Users can quit this mode by pressing “ON/OFF”, “Reset”, or any button of “Hold time”. The sensor settings are changed accordingly .

CCT Adjust

Cool: Long press to adjust the color temperature towards Cool, release to stop and lock down current color temperature.

Warm: Long press to adjust the color temperature towards Warm, release to stop and lock down current color temperature.

Neutral: Press "Neutral" button, the color temperature will adjust to 50% cool + 50% warm.

CCT quick selection (DIP switch)

DIP switch + IR remote control 2 channels CCT setting. Automatically override each other upon the latest operation.
