Microwave motion senor switch, special for use with solar system or upgrade standard fixture with non-dimmable constant voltage LED driver into sensor light with dimming function

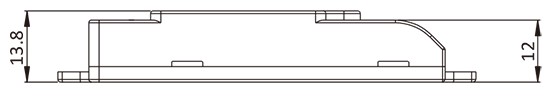

Size:

Features:

6. Special designed for : 1-solar system application

2-low voltage halogen lamp application

7. Super small size, flexible to be integrated into any suitable fixtures.

8. Super compact, flexible to be integrated into any suitable fixtures.

9. Daylight monitoring function for built-in application.

10. RoHS compliant.

Settings:

Detection range:

can be reduced by selecting the combination on the DIP switches to fit orecisely each application.

100%, 50% for your options

Hold-time

means the time period to keep the lamp on 100% after motion detected.

T3s, 1min, 5min,20min for your options

Daylight sensor

means the daylight threshold to enable or disable the sensor function.

Disable, 50lux, 10lux,2lux for your options

Stand-by period

this is the time period that the lamp remains at low light level before it is completely switched off in the long absence of people.

10s,10min,30min, +∞ for your options

Stand-by dimming level

this is the dimmed low light level you would like to have after the hold-time in the absence of people.

20%, 50% for your options

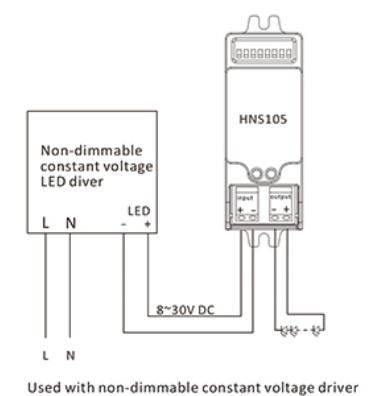

Wiring diagram:
