Security sensor, on/off 5.8G microwave Motion Sensor, perfect for
security detector
5.8G enhanced detection range security sensor intergrated with 5.8G
microwave motion sensor, achieve the intelligent security system.

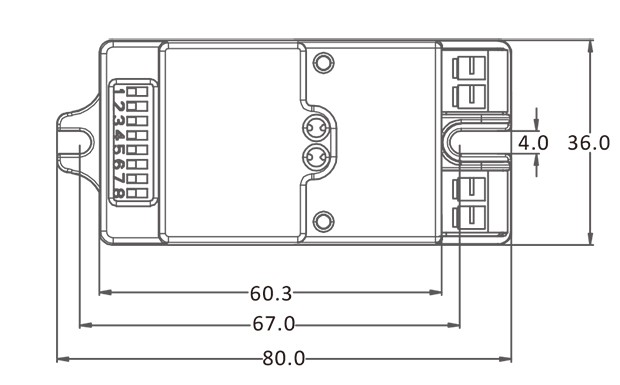

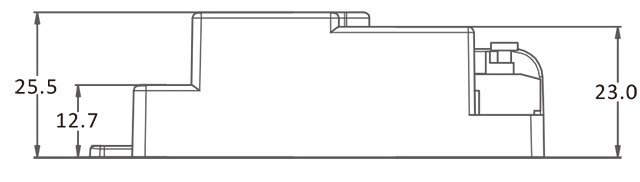

Size: 80*36*25.5mm
Features--
| Input voltage: | 120〜277V AC, 60Hz(US version) 220-240V AC, 50Hz (EU version) |
| Rated load: | 400W@120VAC (capacitive) 800W @ 200〜277VAC (capacitive) |
| Stand-by power: | <1w |
| Operation temperature: | -20℃~ +70℃ |
5.8GHz C-band microwave motion sensor, on/off function.
Real built-in application, daylight monitoring function by
Dual-processor technology.
Zero-cross point operation, protect the sensor relay against the
in-rush current, secure the max. load and life time of the relay.
RoHS compliant.
IP rating: IP20.
Settings--
Detection range
Detection range can be reduced by selecting the combination on the DIP switches to fit precisely each application.
100%,75%,50%,25% for your options
Hold-time
Hold-time means the time period to keep the lamp on 100% after
motion detected.
*when hold-time set as 3s, sensor enters into test mode, this test
mode is mainly for users to choose the desired detection range. In
this mode, the daylight sensor is disabled, when there is no
motion, fixture keeps off, when there is motion detected, fixture
keeps a cycle of 3s on and 2s off.
T3s, 30s,90s,5mmin,10min,30min for your options
Daylight sensor
Daylight sensor means the daylight threshold to enable or disable
the sensor function.
"Disable": The sensor works always, even during daylight.
"50lux": The sensor works only in twilight.
"10lux, 2lux": The sensor works only in the dark.
Disable, 50lux, 10lux, 2lux for your options
Wiring diagram
Detection pattern
Ceiling mouting: up to 12m in diameter
Wall mounting: up to 20m.
Daylight monitoring function--
Utilizing the Dual-processor technology, this sensor can tell the
difference of natural light and artificial light(lamp) from behind
the diffuser, switch on automatically(even without movements) when
the ambient light is below target value, and then switch off
automatically whenever the artificial light is not required(ambient
light is bright enough).
