2019 new design microwave motion sensor for high bay big distance motion sensor

Up to 12~15m high for reinforced detection range

specially designed for highbay fixtures (warehouse lamp / canopy / shoebox / gas station lamp / stadium lamp, etc).

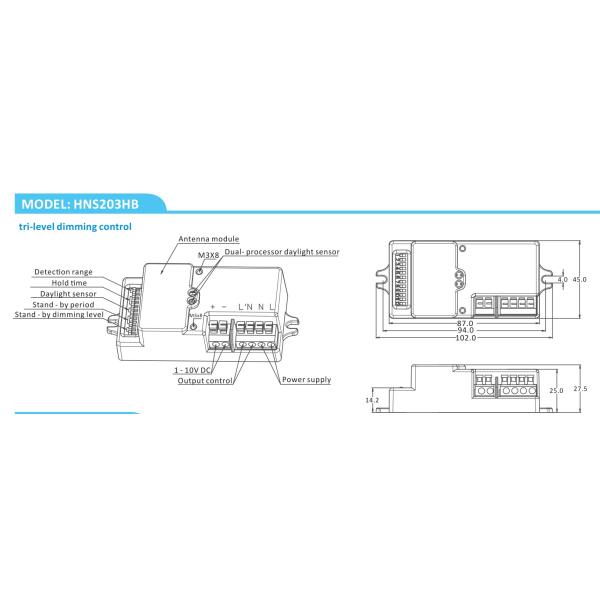

Size:

Features:

8. 5.8GHz C-band microwave

9.Dual-processor technology for built-in application.

10. Zero-cross point operation, protect the sensor relay against the in-rush current, secure the max. load and life time of the relay.

11. RoHS compliant.

Settings:

Detection range: 100%, 75%, 50%, 25%

Hold time: T3s, 30s, 90s, 5min,10mi,30min

Daylight sensor: Disable, 50lux, 10lux, 2lux

Stand-by period: 10s, 5min, 10min, 30min,1H, +∞

Stand-by dimming level: 0%, 10%, 30%, 50%

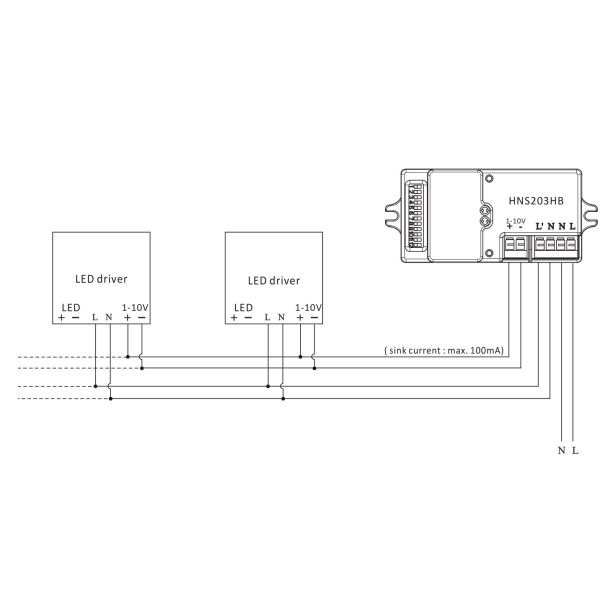

Wiring diagram:

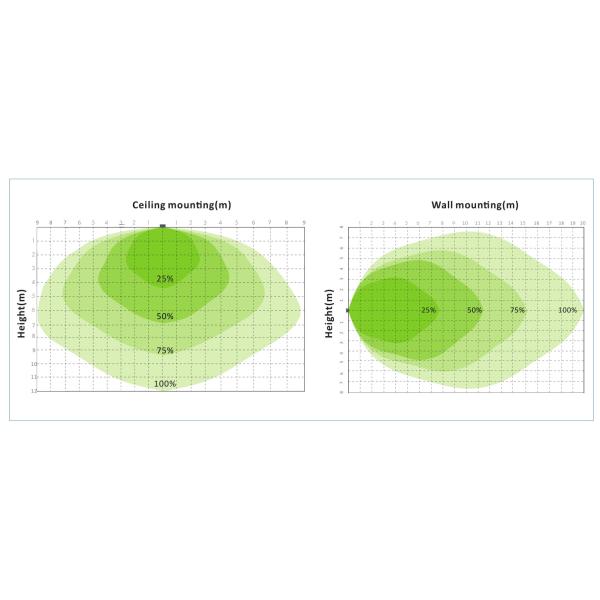

Detection pattern

Daylight monitoring function:

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, switch on automatically(even without movements) when the ambient light is below target value, and then switch off automatically whenever the artificial light is not required(ambient light is bright enough).

This is the REAL & INTELLIGENT daylight monitoring sensor for built-in installation.
