Microwave doppler sensor HNS204 detached version on/off microwave motion sensor

Detached antenna head, ideal option for fixtures who have very limited space to mount the whole sensor body onto the LED plate.

Features--

Settings(by DIP switch)--

Detection range
100%, 75%, 50%, 25%

Hold-time

T3s, 30s, 90s, 5min, 10min, 30min

Daylight sensor

Disable, 50lux, 25lux, 10lux, 2lux

Settings(by remote control IR12)--

Permanent ON/OFF function

Sensor mode

Reset function

Ambient learn

Test mode

*Test mode defaulted settings—

Daylight sensor=disable

Hold time=3s

In this mode, after motion detected, sensor enters into a cycle of 3s on and 2s off.

Wiring diagram--

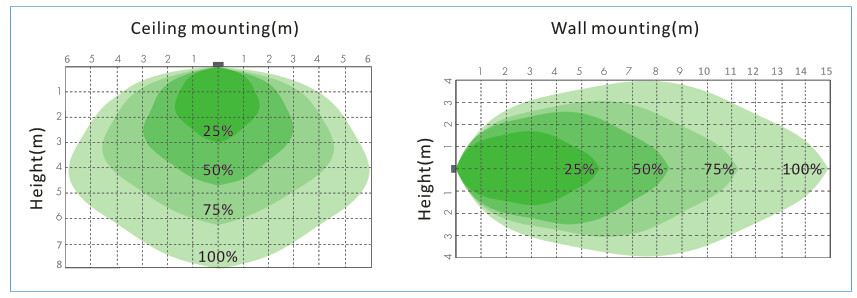

Detection pattern--

Lux-Off function--

Utilizing the Dual-processor technology, this sensor can tell the difference of natural light and artificial light(lamp) from behind the diffuser, then switch off automatically whenever the artificial light is not required(ambient light is bright enough).

This is the REAL& INTELLIGENT lux-off sensor for built-in installation.

Note: Lux-Off sampling time--30s.
