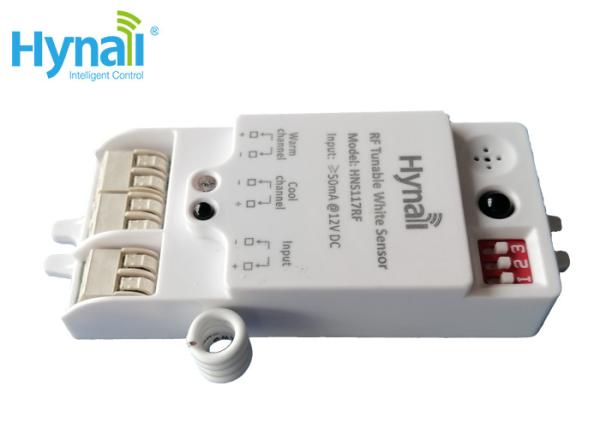

12V microwave sensor RF wireless motion sensor with daylight monitoring, tunable white & tri-level dimming control

Quick Detail:

1. RF grouping setting: DIP switch and remote control, DIP switch for fast grouping, and remote control for personalization.

2. Multiple functions integrated: 0-10v dimming control, RF wireless cluster control, tunable white and daylight monitoring

3. Two channels output 0~10V / PWM signal, achieve color temperature adjustment and tri-level dimming.

4. Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

Size:

Structure:

Features:

Settings:

OCC OFF function Press “OCC OFF” button, the motion sensor will be disabled. Dim Press “Dim” button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved. Reset function Press “Reset” button, all sensor settings go back to factory default settings. Sensitivity=100% Daylight sensor=disable Hold time=90s Twilight time=5min Twilight level=10% CCT=Neutral After desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” buton again and then lock down the new brightness again.

Ambient learn
Press “Ambient learn” button, the latest surrounding lux value overwrites previous lux value learned, and set as
the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

Test mode
“Test mode”is for testing purpose only, for users to check the functionality and choose the desired detection range.

The sensor goes to test mode automatically after pressing this button.
Test mode defaulted settings--
Daylight sensor=disable
Hold time=3s
Twilight time=N/A
Twilight level=N/A

Users can quit this mode by pressing “ON/OFF”, “Reset”, or any button of “Hold time”. The sensor
settings are changed accordingly .

In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off.
In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on
and 2s off (0.5s soft off + 1.5s off).

RF grouping setting:
