RF wireless, tunable white and tri-level dimming control 12V microwave sensor

Features:

8.Two channels output 0~10V / PWM signal, achieve color temperature adjustment and tri-level dimming.

9.RF wireless cluster control, ideal for retrofit project / parking garage / staircase / corridor applications,
easy installation, free of wiring.

Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

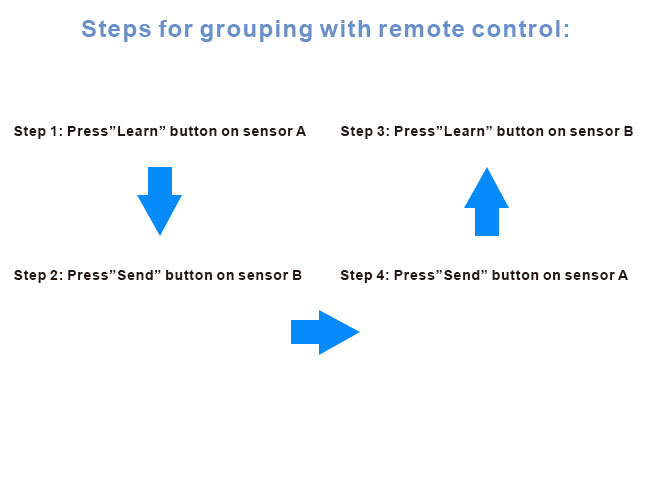

RF Grouping ( via remote control )

Short press “Learn” button to the receiver unit to start grouping mode, the receiver unit will beep quickly (every second
for 3min). This grouping mode will last for 3min, second short press on it will quit the grouping mode.

Short press “Send” button to the commander unit, it will beep once to start a 5s RF signal sending,and then beep twice to
indicate finish of it. After receiving the RF signal, the receiver unit will beep 1s to indicate the success of grouping.

Long press “Erase” button for 5s to the sensor unit, it will long beep once, to indicate the success of erasing.

Note:

1. If you want the sensor to work as both commander and receiver , you need to repeat the “learn” and “send” process
again with the identification exchanged.

2. Each receiver can learn up to max. 32 commanders, late commanders beyond 32pcs will automatically substitute earlier ones.
3. Before using the remote control for grouping, you have to position the grouping DIP switch at OFF - OFF - OFF.
